Home RajahTerminals Distributed by: Eppler Company Ponte Vedra, Fl  32082

Price and Availability requests 904 -553 -6336 Ask for Jim OR 202-701-3135 Ask for Drew Fax 904 -212-0698 Drew@EpplerCompany.net Jim@EpplerCompany.net Price and Availablity requests submitted by email or fax.

Most Rajah Terminals are sold in packages, no single sales.
Credit Card Authorizaion Form	Specialty Terminal & Electrode	Ignition Terminl Kits	Electrical Clips & Rubber Boots
High Temperature Ceramic Spark Plug Boots	Ignition Cable	Cabel Assemblies and Fiberglas Braid	Auburn Ignitors

	Cage terminal, straight E9-CT		Spring snap cable terminal E9-SS
	Ring terminal for ignition cable E9-R-2		Stud ferrule cable terminal E9-SF
	Thrust cable terminal E9-TT		Cage on 8-32 threaded screw E9-CT-TS 8-32 Cage on 10-32 threaded screw E9-CT-TS 10-32

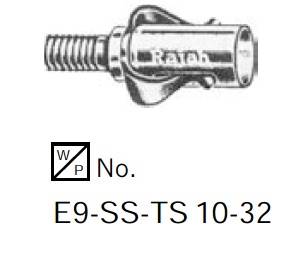

	Spring snap on 10-32 screw E9-SS-TS 10-32		Split ring terminal E9-SR
	Hollow stud tapped E9-HS 6-32 E9-HS 10-32		Cage on spring snap terminal E9-CT-SS
	Angle cage terminal E9-ACT		Angle spring snap cable fitting E9-ASS

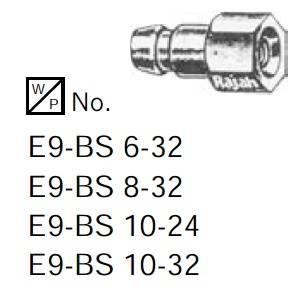

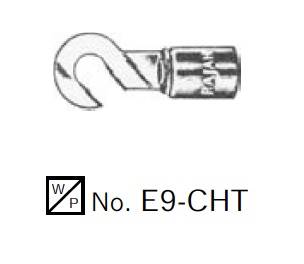

	Hook on ferrule terminal E9-CHT		E9-BS Base stud with 6-32 thread Base stud with 8-32 thread Base stud with 10-24 thread Base stud with 10-32 thread

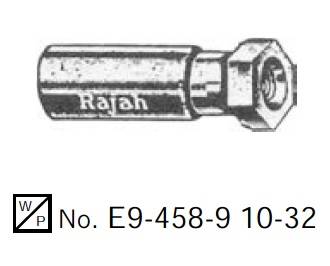

	10-32 plunger terminal E9-458-9 10-32		Right angle cage terminal E9-RC

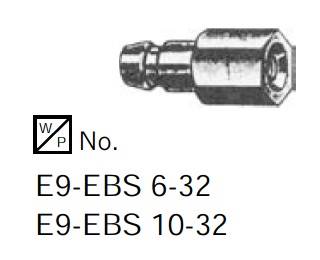

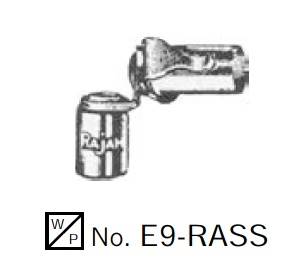

	Right angle spring snap terminal E9-RASS		E9-EBS Extended base stud, 1” long Extended base stud, 1” long

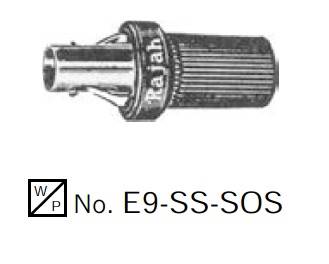

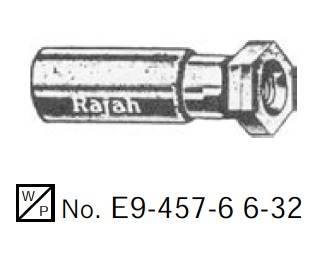

	6-32 plunger terminal E9-457-6 6-32		Spring snap w/Thermoplastic base E9-SS-SOS

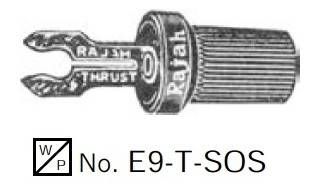

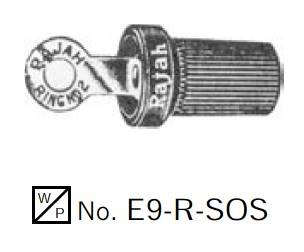

	Ring terminal w/Thermoplastic base E9-R-SOS		Thrust terminal w/Thermoplastic E9-T-SOS

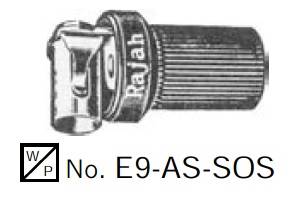

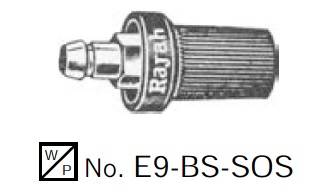

	Angle spring snap, Thermoplastic E9-AS-SOS		Base stud with black Thermoplastic E9-BS-SOS

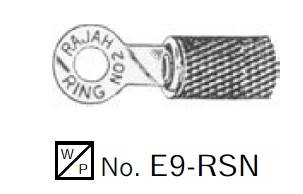

	Spring snap with brass ferrule E9-SSN		Ring terminal with knurled brass ferrule E9-RSN

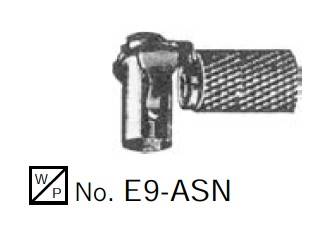

	Thrust terminal & knurled ferrule E9-TSN		Angle spring snap knurled fitting E9-ASN
Back to Top Of Page

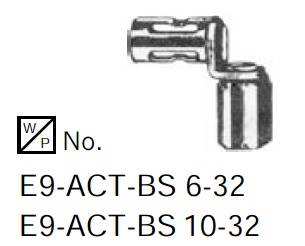

	Stud with knurled brass ferrule E9-BSN		E9-ACT Angle cage on 6-32 hex stud Angle cage on 10-32 hex stud

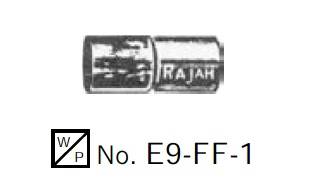

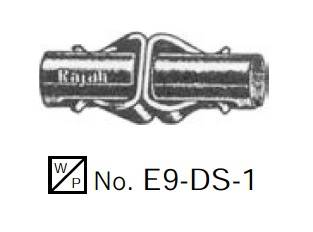

	Spring snap on spring snap E9-DS-1		Ferrule on ferrule terminal E9-FF-1

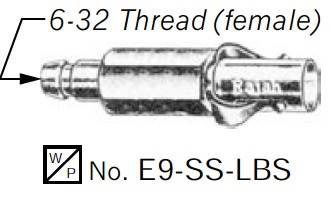

	Cage on cage terminal E9-CC-1		Spring snap on 6-32 tapped stud E9-SS-LBS

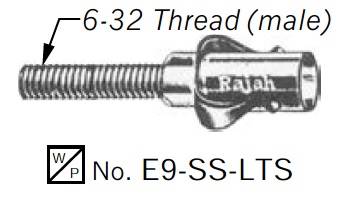

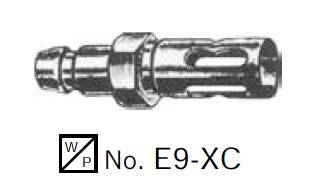

	Spring snap on long 6-32 screw E9-SS-LTS		SX-1 stud on cage terminal E9-XC

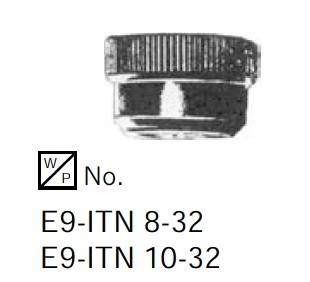

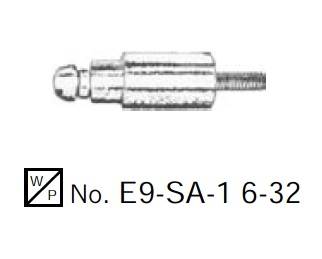

	Union Electric stud 6-3 E9-SA-1 6-32		E9-ITN 8-32 10-32 Large thumb nut

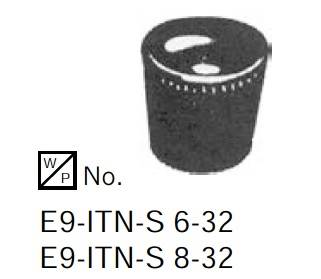

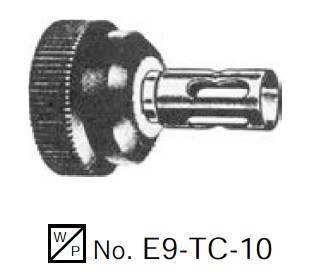

	Thumb nut on cage terminal E9-TC-10		Small thumb nut E9-ITN-S 6-32 8-32
	Thumb nut on spring snap terminal E9-TS-10		Ram’s horn clip E9-R-1

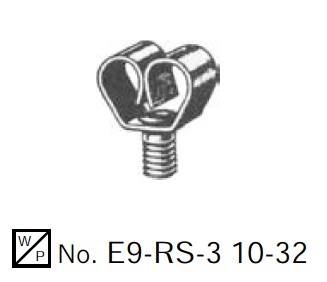

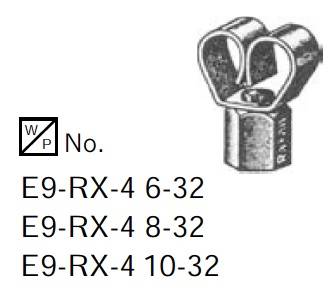

	Ram’s horn on hex base E9-RX-4		Ram’s horn on threaded screw E9-RS-3 10-32
Back to Top Of Page

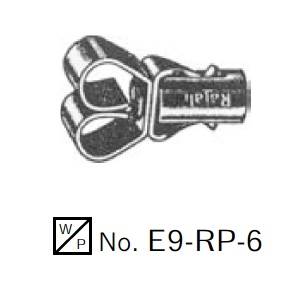

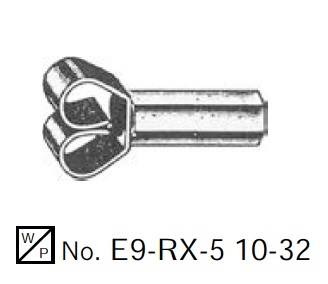

	Ram’s horn with 1” base E9-RX-5		Ram’s horn on spring snap E9-RP-6

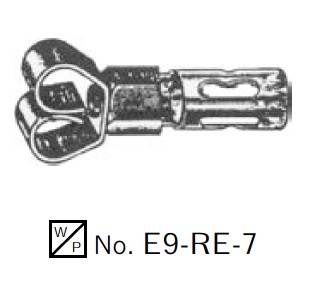

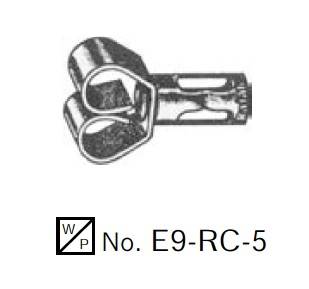

	Ram’s horn on cage terminal E9-RC-5		Ram’s horn on extended cage E9-RE-7

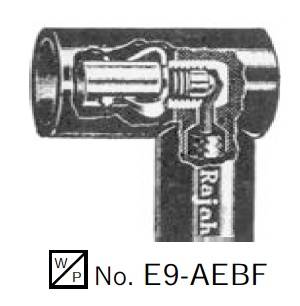

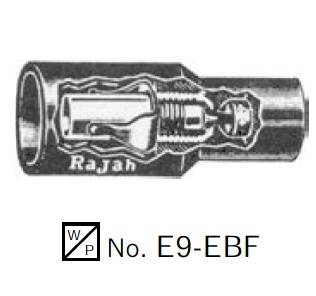

	Angle extended Thermoplastic fitting E9-AEBF		Extended Thermoplastic terminal E9-EBF

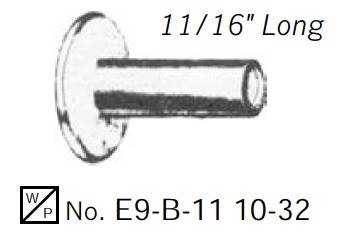

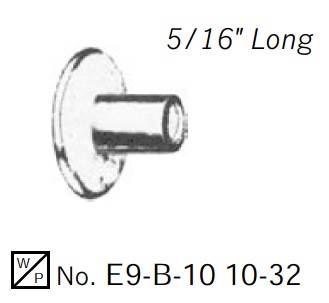

	Button contact, brass, 5/16” long E9-B-10 10-32		Button contact, brass, 11/16” long E9-B-11 10-32

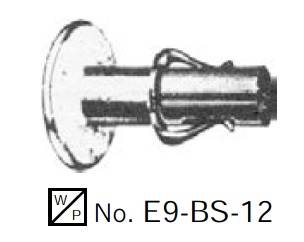

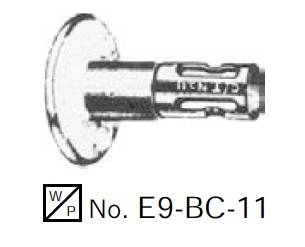

	Button contact on cage fitting E9-BC-11		Button contact on spring snap E9-BS-12

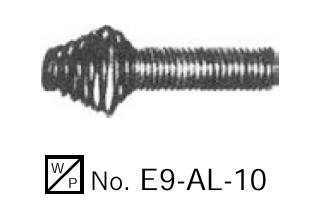

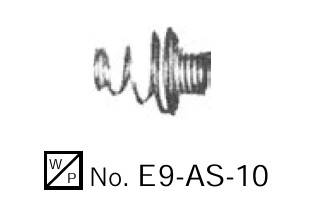

	Long “A” spring for 10-32 thread E9-al-10		Short “A” spring for 10-32 thread E9-AS-10

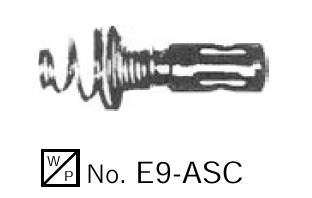

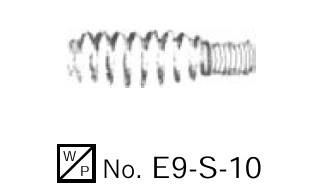

	Small “A” spring on cage E9-ASC		Beckett spring, 10-32 E9-S-10

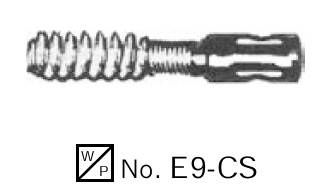

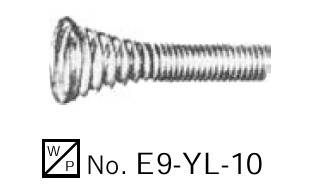

	Straight spring on cage E9-CS		Long “Y” spring 10-32 E9-YL-10

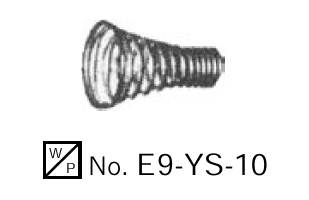

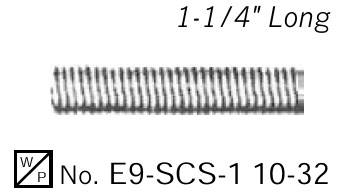

	Short “Y” spring 10-32 E9-YS-10		Straight 10-32 spring 1-1/4” long E9-SCS-1 10-32

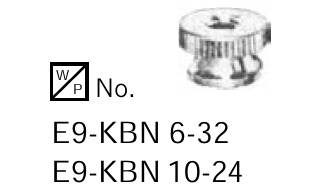

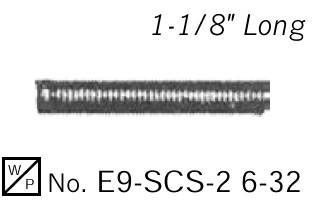

	Straight 6-32 spring 1-1/8” long E9-SCS-2 6-32		Knurled brass battery nut E9-KBN-6 -32 E9-KBN-10-24

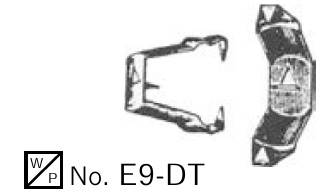

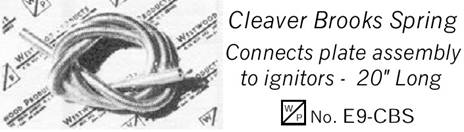

	Brass distributor terminal E9-DT		Cleaver Brooks spring, 20” long E9-CBS
Back to Top Of Page

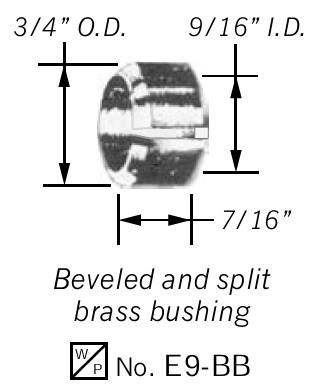

	Walter Kidde brass buss bar E9-686 BAR		9/16” X 3/4” brass bushing E9-BB

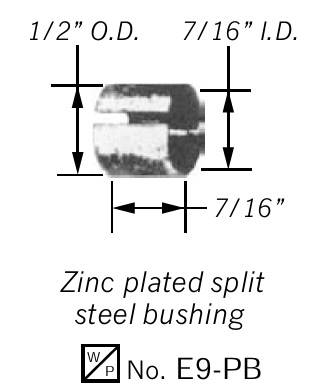

	7/16” X 1/2” protective bushing E9-PB		Dravo bushing E9-DB

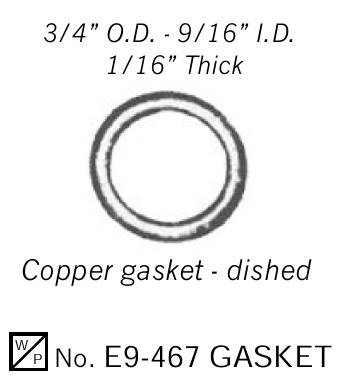

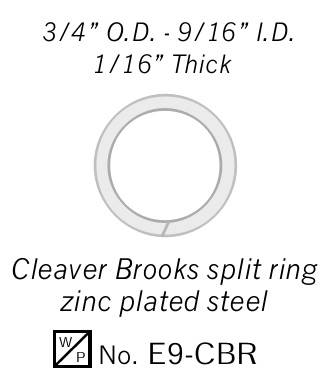

	Cleaver Brooks split ring E9-CBR		9/16” X 3/4” formed copper gasket E9-467 GASKET

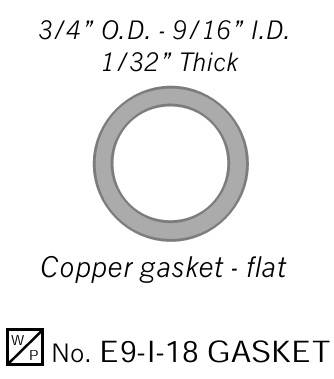

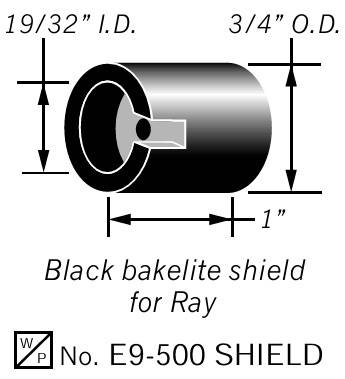

	9/16” X 3/4” flat copper gasket E9-I-18 GASKET		Black shield for Ray 500 E9-500 SHIELD

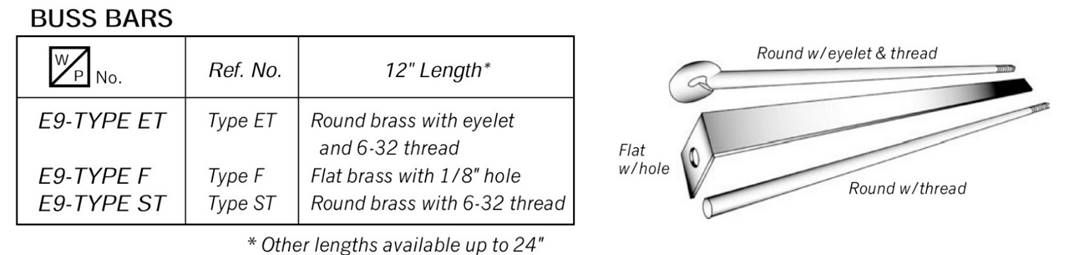

Specialty Terminal & Electrode
		12 INCH LENGTH
	E9-TYPE ET E9-TYPE F E9-TYPE ST	Round Brass with eyelet and 6-32 thread. Flat brass with 1/8 hole Round brass with 6-32 thread

Back to Top Of Page

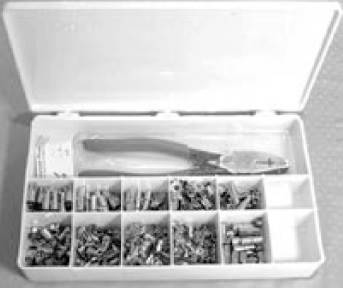

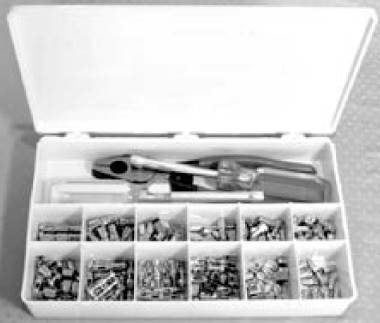

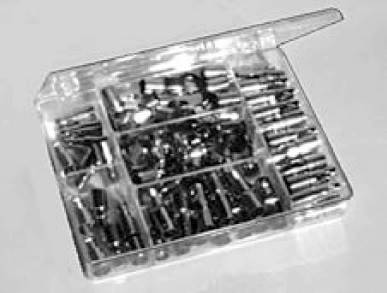

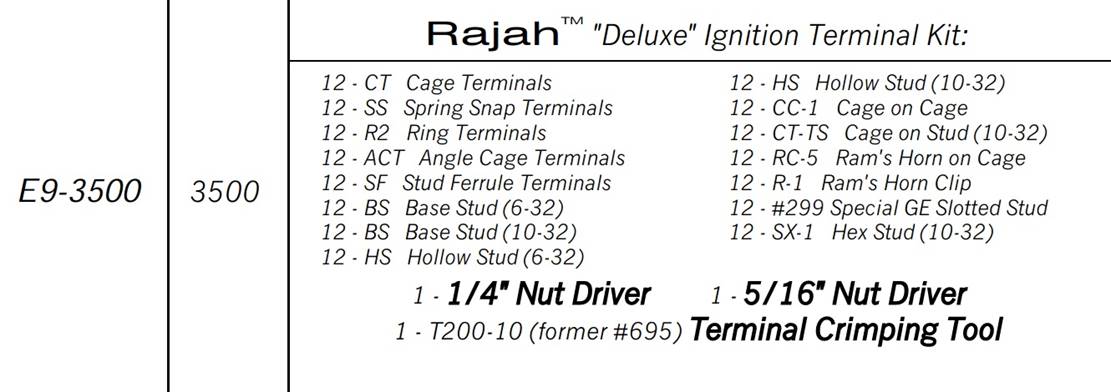

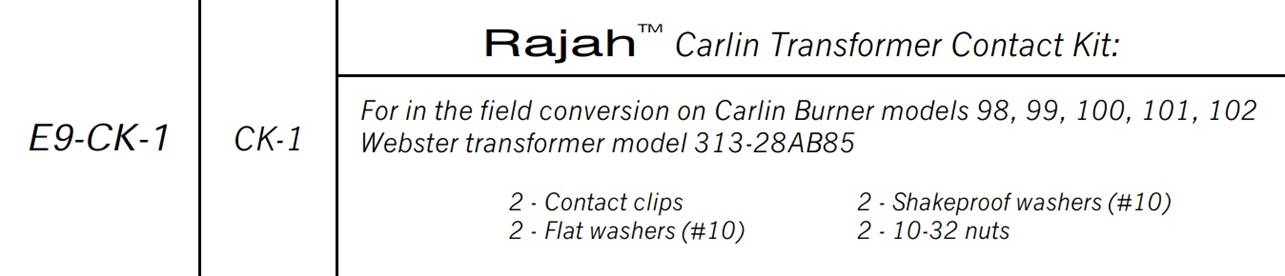

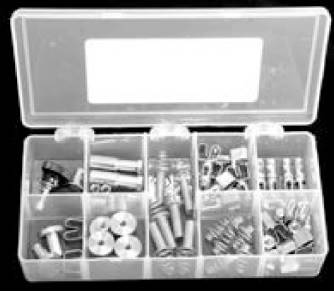

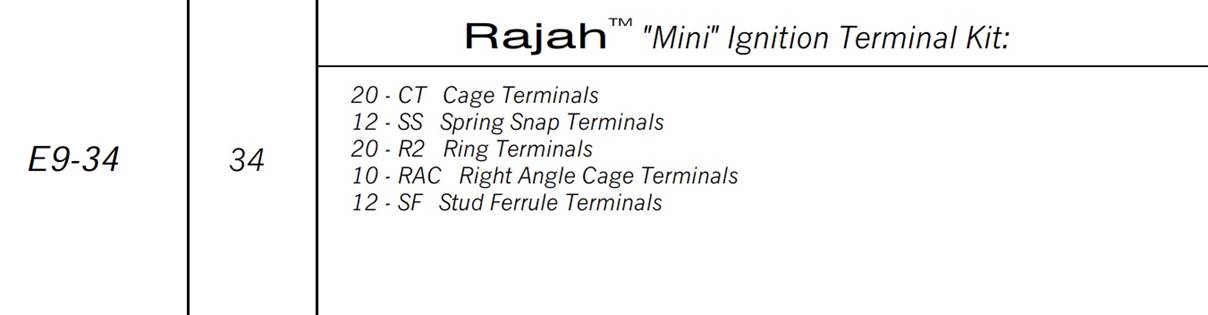

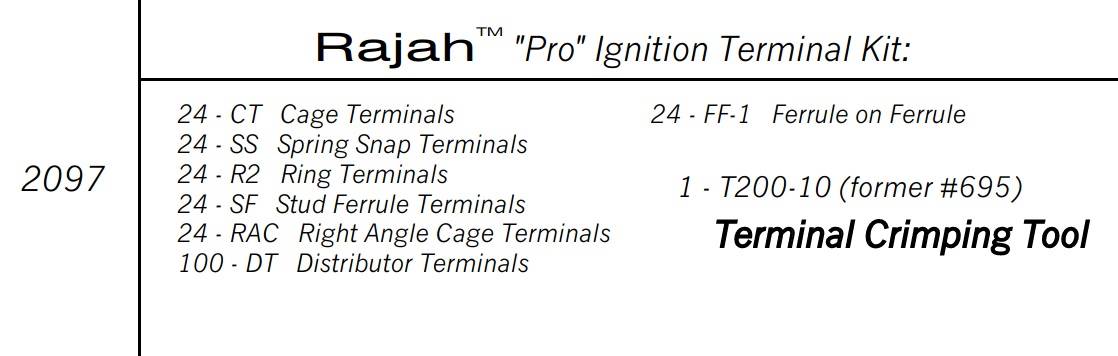

Ignition Terminal Kits

Electrical Clips & Rubber Boots

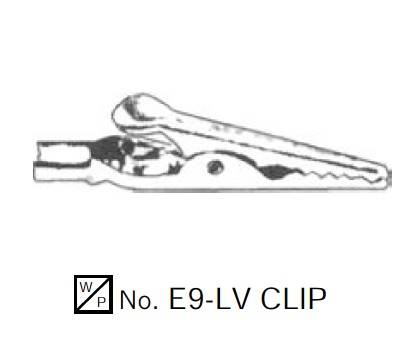

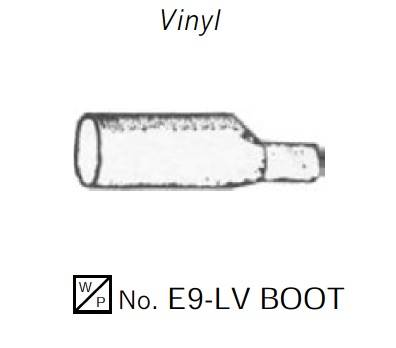

		E9-LV CLIP					E9-LV BOOT

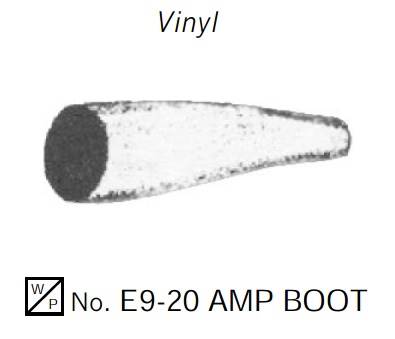

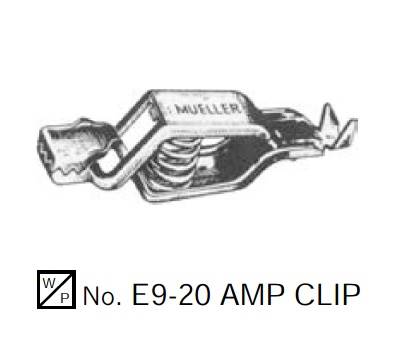

		E9-29-AMP CLIP					E9-20 AMP BOOT

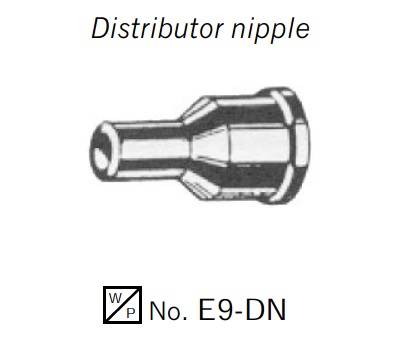

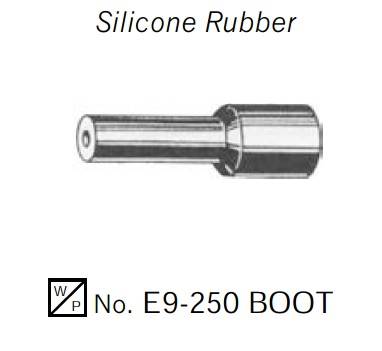

		E9-DN					E9-250 BOOT

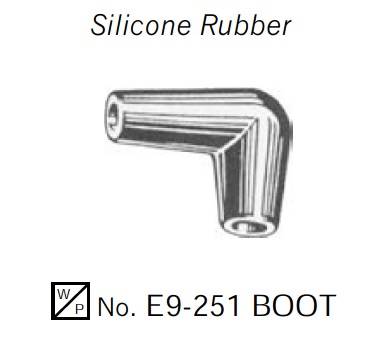

							E9-251 BOOT
High Temperature Ceramic Spark Plug Boots- Stainless Steel Terminals

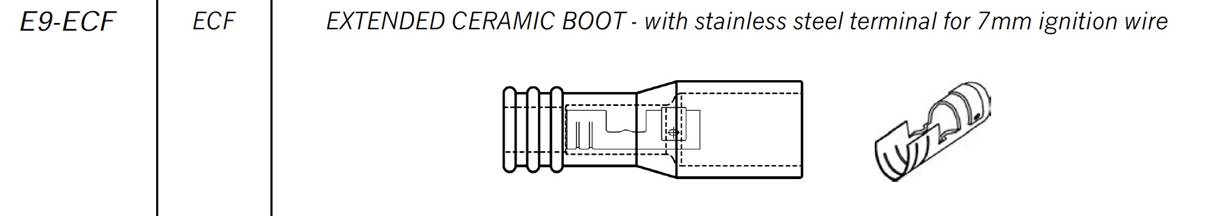

E9-ECF

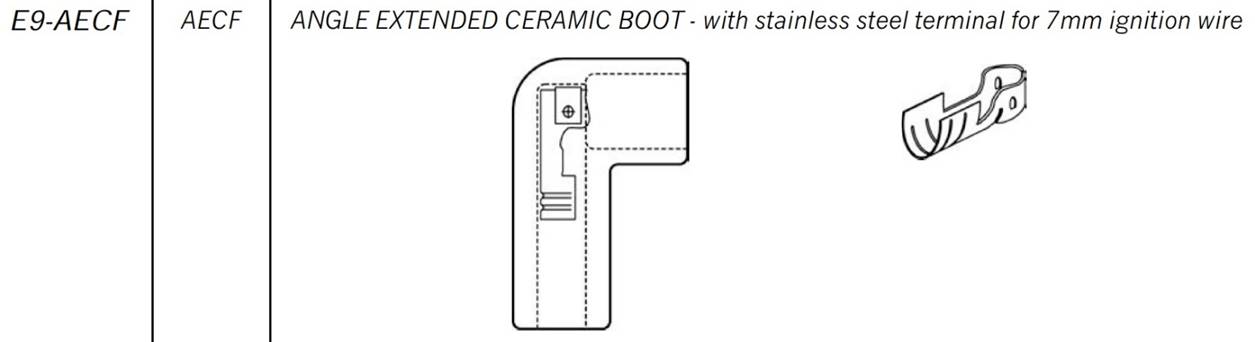

E9-AECF
Back to Top Of Page
Ignition Cable
Cable Name	UL Recognized Component		25 Foot Roll		100 Foot Roll	1,000 Foot Roll
GTO-15	Yes		E60-25		E60-100	E60-1000
White Silicone			E62-25		E62-100	-
Red Silicone	Yes		E63-25		E63-100	E60-1000
GTO-15 (Black)		Large .275” outside diameter fits Rajah terminals perfectly. Withstands more than 15,000 VAC with low current leakage. Resists arc-over, tracking, and burning. Tested to withstand conditions of heat, oil, and moisture. No. 14 gauge, 19 x 26 stranded tinned copper wire. All vinyl insulation affords low temperature flexibility. Flame retardant, will not support combustion. Tough and abrasion resistant, yet easy stripping. Temperature range: UL Recognized to 105 degree C 221 degree F.
White Silicone		Large .275” outside diameter fits Rajah terminals perfectly. Withstands more than 10,000 VAC and 25,000 VDC with low current leakage. No. 16 gauge, 19 x 26 stranded tinned copper wire Natural Silicone insulation, high dielectric strength. Temperature range; -65 degree F to 400 degree F, -54 degree C to 204 degree C
Red Silicone		Large .275” outside diameter fits Rajah Terminals perfectly. Withstands more than 10,000 VAC and 25,000 VDC with low current leakage. No. 16 gauge , 19 x 26 stranded nickel plated copper wire. Natural Silicone insulation, high dielectric strength. Temperature range -65 degree F to 482 degree F, -54 degree C to 250 degree C. UL Recognized.

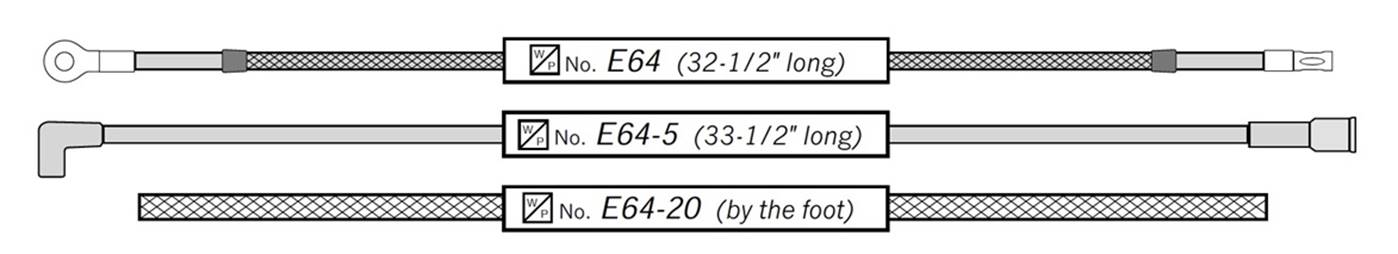

Cable Assemblies and Fiberglas Braid
E64	Red Silicone wire high temperature cable assembly with protective metal braid. Temperature range -65 F to 450 F. Overall length 32 ½ inches.
E64-5	Red Silicone wire high temperature cable assembly with red Silicone boots. Temperature range -65 F to 450 F, Withstands 10000, VAC/ 25,000 VDC Overall length 33 1/2inche
E64-20	Fiberglas braided sleeving. Fits over ignition cable for high temperature protection. Sold by the foot. (EX. For five feed of sleeving order 5 of the E64- 20. Shipped as one pieces.
