Watson McDaniel Condensate Return Pump Models	How are they used	Basic Information

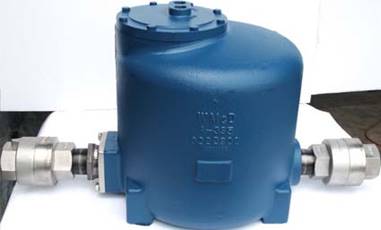

Submittal Download PMPC	The PMPC Pressure Motive Pump body & cover are manufactured from ductile iron. ASME “UM” Code Stamp is available. This pump is typically used when liquids must be moved to higher elevation, higher pressure or extended distances.	Model: PMPC Body:  Ductile Iron Check Valves: Stainless Steel Max Capacity (3" x 2", 12" Head, Simplex, Steam Motive): 19,700 lbs/hr Max Operating Pressure:  200 PSIG Size (Inlet x Outlet): 1" x 1", 1-1/2" x 1", 1-1/2" x 1 1/2", 2" x 1", 2" x 1-1/2", 2" x 2", 3" x 2" Connections: NPT
Submittal Download PMPF	The PMPF Pressure Motive Pump body & cover are manufactured from carbon steel. These tanks are fabricated with 1/8” corrosion allowance and receive the ASME “UM” Code Stamp. This pump is typically used when liquids must be moved to higher elevation, higher pressure or extended distances.	Model:  PMPF Body:  Carbon Steel Check Valves: Stainless Steel Max Capacity (3" x 2", 12" Head, Simplex, Steam Motive): 19,700 lbs/hr Max Operating Pressure:  200 PSIG Size (Inlet x Outlet): 1" x 1", 1-1/2" x 1", 1-1/2" x 1 1/2", 2" x 1", 2" x 1-1/2", 2" x 2", 3" x 2" Connections: NPT
Submittal Download PMPSS	The PMPSS Pressure Motive Pump body & cover are manufactured from 304L Stainless Steel. These pumps receive the ASME “UM” Code Stamp. This pump is designed to be used in harsh and corrosive environments.	Model:  PMPSS Body:  304L Stainless Steel Check Valves: Stainless Steel Max Capacity (3" x 2", 12" Head, Simplex, Steam Motive): 19,700 lbs/hr Max Operating Pressure:  150 PSIG Size (Inlet x Outlet): 1" x 1", 1-1/2" x 1", 1-1/2" x 1 1/2", 2" x 1", 2" x 1-1/2", 2" x 2", 3
Submittal Download PMPLS	The PMPLS Pressure Motive Pump is a lower profile than the standard PMPF model and is sometimes required when draining condensate from process equipment that is positioned close to the ground which limits the filling head of the pump. Pump & body cover are manufactured from carbon steel and receive the ASME “UM” Code Stamp.	Model:  PMPLS Body:  Carbon Steel Check Valves: Stainless Steel Max Capacity (1" x 1", 6" Head, Simplex, Steam Motive): 2,520 lbs/hr Max Operating Pressure:  150 PSIG Size (Inlet x Outlet): 1" x 1", 1-1/2" x 1", 1-1/2" x 1-1/2" Connections: NPT
Sumittal Download PMPNT	The Model PMPNT Pressure Motive Pump has an extremely low profile. These low-profile tanks are required when draining condensate from process equipment positioned close to the ground which limits the filling head of the pump.	Model:  PMPNT Body:  Cast Iron Check Valves: Stainless Steel Max Capacity (1 1/4" x 1 1/4", 6" Head, Simplex, Steam Motive): 3,360 lbs/hr Max Operating Pressure:  150 PSIG Size (Inlet x Outlet): 1" x 1", 1-1/4" x 1-1/4" Connections: NPT

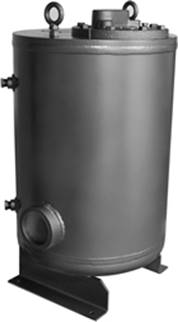

Submittal Download PMPBP	The PMPBP is an extremely High-Capacity Pressure Motive Pump for applications requiring large transfer of condensate or other liquids. The internal operating mechanism functions identically to other pumps in the PMP series. ASME “U” Code Stamp is available.	Model:  PMPBP Body:  Carbon Steel Check Valves: Stainless Steel / Steel Max Capacity (24" Head, Simplex, Steam Motive): 49,500 lbs/hr Max Operating Pressure:  150 PSIG Size (Inlet x Outlet): 4" x 4" Connections: NPT
Sumittal Download PMPSP	The PMPSP Sump Drainer ("The Pit Boss") uses the identical internal mechanism as the standard PMP models. The piping configuration is such that the liquid is discharged vertically upwards as opposed to horizontally out the side. This allows the unit to be easily positioned inside of a sump area. Condensate or water from the sump enters the tank through a stainless steel low resistance check valve.	Model:  PMPSP Body Material:  Carbon Steel Cover Material: Ductile Iron Check Valves: Stainless Steel Max Capacity (Water): 39 GPM Max Operating Pressure:  150 PSIG Sizes : 1-1/2" x 1-1/2", 2" x 2", 3" x 2" Connections: NPT
