Boiler Valves Entire
Catalog Or Individual Spec Sheets Below |
Industrial Valves
Entire Catalog Or Individual Spec Sheets Below |
||||||||||||||||||
|
|
|||||||||||||||||||
|
|
||||||||||||||||||
|
|
|
||||||||||||||||||
|
|
|
|
|
||||||||||||||||
|
Model 80 Ball Valve (Complies with MSS-SP110-92) 200 lbs. WSP @ 406 ° Max Threaded Ends * Blowout Proof Stem ¼” - ½” Full Flow ¾” - 2” Large Port Diameters CRN OCO7135.2 *Contains Lead. Not Intended for Use in Potable Water Systems* |
|
Model 80MXF Ball Valve (Complies with MSS-SP110-92) 200 lbs. WSP @ 406 ° Max 100% Pressure Tested Blow-Out Proof Stem ¼” - ½” Full Flow ¾” - 2” Large Port Diameters CRN OCO7135.2 *Contains Lead. Not Intended for Use in Potable Water Systems* |
||||||
|
United
Brass |
Model 80SS Ball Valve (Complies with MSS-SP110-92) 200 lbs. WSP @ 406 ° Max 400 lbs. WOG * 100% Pressure Tested Threaded Ends * Blowout Proof Stem ¼” - ½” Full Flow ¾” - 2” Large Port Diameters CRN OCO7135.2 *Contains Lead. Not Intended for Use in Potable Water Systems* |
|
||||||
|
United Brass |
Model 125T Valve 200 WOG 100% Pressure Tested Threaded Ends • Rising Stem Swivel Disc Holder PTFE Disc Integral Seat *Contains Lead. Not Intended for Use in Potable Water Systems* |
United
Brass |
Model 125MM Globe Valve Metal to Metal Seat & Disc 125 lbs. WSP @ 350 ° Max 200 lbs. WOG 100% Pressure Tested Threaded Ends Rising Stem Swivel Disc Holder *Contains Lead. Not Intended for Use in |
|||||
|
United
Brass |
Model 81T Globe Valve Conforms with MSS-SP80-2013 CRN OCO7135.2 200 lbs. WSP @ 406° Max 400 lbs. WOG• 100% Pressure Tested Threaded Ends • Rising Stem • Integral Seat Swivel Disc Holder • PTFE Disc *Contains Lead. Not Intended for Use in Potable Water Systems* |
United
Brass |
Model 381T Globe Valve Conforms with MSS-SP80-2013 CRN OCO7135.2 300 lbs. WSP • 600 lbs. WOG • Integral Seat 100% Pressure Tested • Threaded Ends Rising Stem • Swivel Disc Holder • PTFE Disc *Contains Lead. Not Intended for Use in Potable Water Systems |
|||||
|

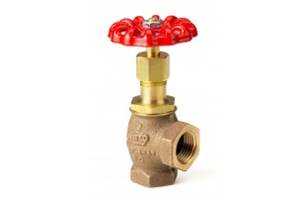

Model 126MM Angle Valve Metal to Metal Seat & disc 125 lbs. WSP @ 350 ° Max 200 lbs. WOG 100% Pressure Tested Threaded Ends Rising Stem Swivel Disc Holder *Contains Lead. Not Intended for Use in Potable Water Systems* |
United
Brass
|
Model 126T Valve 125WSP @ 350° F 200 WOG 100% Pressure Tested • Threaded Ends Rising Stem • Swivel Disc Holder PTFE Disc *Contains Lead. Not Intended for Use in Potable Water Systems* |
||||||
|
United
Brass
|

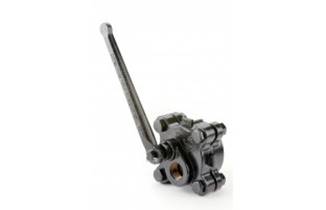

Model 525
Slow Opening Blow-Off Valve Class 300 * ANSI B 16.34 * 665 psi Working Steam Pressure @ 500 F 750 psi @ 100 F * 100% Pressure Tested * Threaded Ends * Epoxy Coated
(E-Coat) Max Pressure for Boiler Blow off 530 PSI |
United
Brass
|
Model 725 Slow Opening Flanged Blow-Off Valve Class 300 * ANSI B 16.34 * 605 psi Working Steam Pressure @ 500 F 740 psi @ 100 F * 100% Pressure Tested * Epoxy Coated (E-Coat) Max Pressure for Boiler Blow Off 485 PSI |
|||||
|
United Brass |
Model 226UT “Y” Blow-Off Valve Complies with MSS-SP-80-2013 CRN OCO7135.2 200 WSP @ 406° Max • 400 WOG Non-Shock Service • 100% Pressure Tested Threaded Ends • Rising Stem • Swivel Disc Holder PTFE Disc • Integral Seat • Max Pressure for Boiler Blow Off 160 PSI *Contains Lead. Not Intended for Use in Potable Water Systems* |
United
Brass |
Model 325U “Y” Blow-Off Valve Complies with MSS-SP-80-2013 CRN OCO7135.2 Class 300 • Non-Shock Service 100% Pressure Tested • Threaded Ends Rising Stem • Swivel Disc Holder Seat & Disc 400-500 Brinnell Stainless
Steel Max Pressure 390 PSI @ 500° F • Max Pressure for Boiler Blow-Off 312 PSI *Contains Lead. Not Intended for Use in Potable Water Systems* |
|||||
|
United Brass |

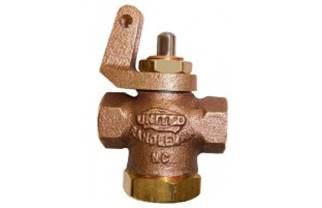

Model 425
Quick Opening Blow-Off Valve Class 300 * ANSI B 16.34 * 665 psi Working Steam Pressure @ 500 F 750
psi @ 100 F * 100% Pressure Tested * Threaded
Ends * Epoxy Coated (E-Coat) Max Pressure for Boiler Blow Off 530 PSI |
United
Brass |
Model 625 Quick Opening Flanged Blow-Off Valve Class 300 * ANSI B 16.34 * 605 psi Working Steam Pressure @ 500 F 740 psi @ 100 F * 100% Pressure Tested * Epoxy Coated (E-Coat) |
|||||
|
United Brass |
Model 50T Check Valve Spring Loaded Lift Check Complies with MSS-SP-80-2013 CRN OCO7135.2C 200WSP @ 406° Max 400 WOG 100% Pressure Tested Threaded Ends • PTFE Disc Integral Seat *Contains Lead. Not Intended for Use in Potable Water Systems* |
United Brass |
Model 50TLS Lift Check Valve Complies with MSS-SP-80-2013 CRN OCO7135.2C 200WSP @ 406° Max 400 WOG 100% Pressure Tested Threaded Ends • PTFE Disc Integral Seat *Contains Lead. Not Intended for Use in Potable Water Systems* |
|||||
|
United Brass |
Spring-Loaded Lift Check Complies with MSS-SP-80-2013 CRN OCO7135.2C 300WSP • 600 WOG 100% Pressure Tested Threaded Ends • PTFE Disc Integral Seat *Contains Lead. Not Intended for Use in Potable Water Systems* |
United Brass |
Model
350TLS Lift Check Valve Complies with MSS-SP-80-2013 CRNOCO7135.2C 300WSP • 600 WOG 100% Pressure Tested Threaded Ends • PTFE Disc Integral Seat *Contains Lead. Not Intended for Use in Potable Water Systems* |
|||||
United Brass
|
Model 62 Swing Check Valve Complies with MSS-SP-80-2013 CRN OCO7135.2C 200WSP @ 406° Max 400 WOG 100% Pressure Tested Threaded Ends *Contains Lead. Not Intended for Use in Potable Water Systems* |
United Brass |
Model 62T Swing Check Valve Complies with MSS-SP-80-2013 CRN OCO7135.2C 200WSP @ 406° Max 400 WOG 100% Pressure Tested Threaded Ends PTFE Disc *Contains Lead. Not Intended for Use in Potable Water Systems* |
|||||
United Brass
|
Model 63 Swing Check Valve Complies with MSS-SP-80-2013 CRN 0C07135.2C 300 WSP 600 WOG 100% Pressure Tested Threaded Ends *Contains lead. Not Intended for Use in Potable Water Systems* |
United Brass |
Model 99 Swing Check Valve 125 WSP at 350° Max 200 WOG 100% Pressure Tested Threaded Ends Metal Disc Integral Seat |
|||||
|
|
United Brass |
Model 99T Swing Check Valve 125WSP at 350° Max 200 WOG 100% Pressure Tested Threaded Ends PTFE Disc Integral Seat *Contains lead. Not for use in water systems intended for human consumption* |
||||||
United Brass
|
Model 77 Needle Valve CRN OCO7135.2C 200WSP @ 406° Max 400 WOG 100% Pressure Tested Threaded Ends Rising Stem *Contains Lead. Not Intended for Use in PotableWater Systems* |
United Brass |
Model 79 Needle Valve CRN OCO7135.2C 200WSP @ 406° Max 400 WOG 100% Pressure Tested Threaded Ends Rising Stem *Contains Lead. Not Intended for Use in Potable Water Systems* |
|||||
United Brass
|

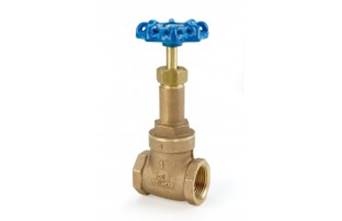

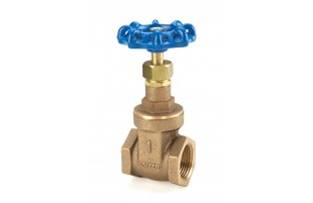

Model 15 Gate Valve (Conforms to MSS-SP-80-97) 125 WSP @ 350 ° Max 200 WOG * 100% Pressure Tested Threaded Ends * Non-Rising Stem *Contains Lead. Not Intended for Use in Potable Water Systems* |
United Brass |
Model 17 Gate Valve Conforms to MSS-SP80-97 150WSP @ 366°F Max 300 WOG Solid Wedge * Screwed Bonnet * Rising Stem *Contains Lead. Not Intended for Use in Potable Water Systems* |
|||||
United Brass
|

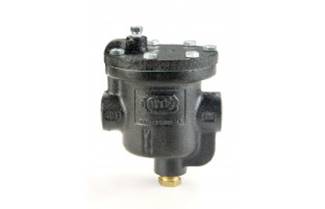

Model 849 ½” Steam Trap 150WSP Body Rating Operating Range 5 – 50PSI Ductile Iron Construction Stainless Steel Ball & Seat E-Coated inside & out for Corrosion Resistance |
United Brass |
Model 849A ¾” Steam Trap 150WSP Body Rating Operating Range 50 – 125PSI Ductile Iron Construction Stainless Steel Ball & Seat E-Coated inside & out for Corrosion Resistance |
|||||
United Brass
|
Model 850 ½” Steam Trap 150WSP Body Rating Operating Range 50 – 125PSI Ductile Iron Construction Stainless Steel Ball & Seat E-Coated Inside & Out For Corrosion Resistance. |
United Brass |
Model 849B ¾” Steam Trap 150WSP Body Rating Operating Range 5 – 50PSI Ductile Iron Construction Stainless Steel Ball & Seat E-Coated inside & out for Corrosion Resistance |
|||||
United Brass
|
Model 19 Boiler Drain Valve (Imported) 125 CWP @ 180° F Max. All Brass Construction with Buna Disc *Contains Lead. Not Intended for Use in Potable Water Systems* |
United Brass
|

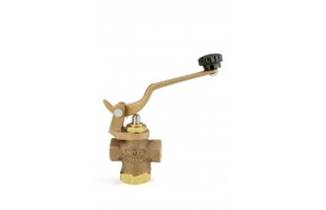

Model 25WACT Whistle Valve Quick-Opening Self-Closing Globe Valve CRN OCO7135.2C 200WSP • 400 WOG 100% Pressure Tested Threaded Ends PTFE Disc • Integral Seat *Contains Lead. Not Intended for Use in Potable Water Systems |
|||||
United
Brass
|
Model 25WT Whistle Valve Quick-Opening Self-Closing Globe Valve CRN OCO7135.2C 200WSP @ 406° Max 400 WOG 100% Pressure Tested Threaded Ends PTFE Disc • Integral Seat *Contains Lead. Not Intended for Use in Potable Water Systems* |
United Brass |
Model 44 Whistle Valve Quick-Opening Self-Closing Globe Valve Less Yoke & Lever 150WSP • 400 WOG 100% Pressure Tested Threaded Ends PTFE Disc • Integral Seat *Contains Lead. Not Intended for Use in Potable Water Systems* |
|||||
United Brass
|
Model
44NY Whistle Valve With Yoke & Loop Handle Lever CRN OCO7135.2C 150WSP • 400 WOG 100% Pressure Tested Threaded Ends PTFE Disc • Integral Seat *Contains Lead. Not Intended for Use in Potable Water Systems* |
United Brass |
Model 44NYLL Whistle Valve Quick-Opening Self-Closing Globe Valve With Yoke Less Lever CRN OCO7135.2C 150WSP • 400 WOG 100% Pressure Tested Threaded Ends PTFE Disc • Integral Seat *Contains Lead. Not Intended for Use in Potable Water Systems |
|||||
United Brass
|

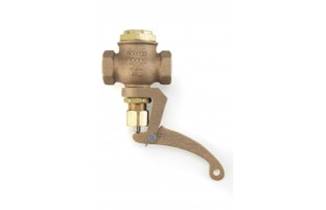

Model 44SS Whistle Valve Quick-Opening Self-Closing Globe Valve With Yoke & Lever CRN OCO7135.2C Built-In Strainer Screen 150WSP • 400 WOG 100% Pressure Tested Threaded Ends PTFE Disc • Integral Seat *Contains Lead. Not Intended for Use in Potable Water Systems* |
|
||||||
United Brass
|
Model 3050 ½” Float Valve Max Inlet Water Pressure 50PSI Max Operating Temperature 300° F Bronze Body Brass Piston EPDM Disc & O-Ring *Contains Lead. Not Intend for Use in Potable Water Systems* |
United Brass |
Model 3050FU - 1/2” Max Inlet Water Pressure 50PSI Bronze Body Brass Piston EPDM Disc & O-Ring |
|||||
United Brass
|
Model 3060 3/4” Float Valve Max Inlet Water Pressure 50PSI Max Operating Temperature 300° F Bronze Body Brass Piston EPDM Disc & O-Ring *Contains Lead. Not Intended for Use in Potable Water Systems. |
United Brass |
Max Inlet Water Pressure 50PSI Bronze Body Brass Piston EPDM Disc & O-Ring |
|||||
United
Brass
|
Model RS45 Float Ball 4” X 5” Oblong Ball with 1/4” Connection Spun Copper Construction Weight – 0.45 lbs. |
United Brass
|
5" Diameter 1/4" Connection Copper Construction Wgt. .44 lbs |
|||||
United Brass
|
Model 3059 Float Ball Rod 1/4” Connection by 10” in Length Includes 2 pcs. 1/4” Brass Nuts for Attaching Rod to Ball |
United Brass |

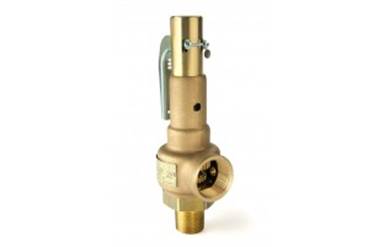

Model 901 ASME Safety Valve Maximum Temperature 405°F Max ASME Tested National Board Certified Body Material: Brass Trim: Bronze Male Inlet X Female Outlet |
|||||
United Brass
|

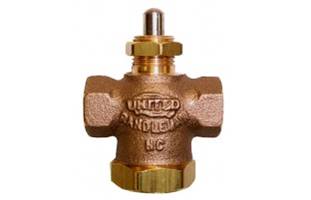

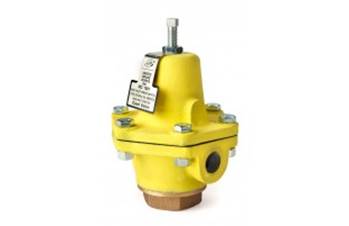

Model 1001 Reducing Valve (Steam & Oil Applications) Max. Inlet Pressure – 200WSP Max. Reduced Pressure – 150WSP * ½ - 2” Size only max reduced pressure – 125WSP Specify Pressure Range: 0 – 45PSI or 20 – 150PSI |
United Brass
|
(Air & Water Applications) Max. Inlet Pressure – 200WOG Adjustment Range – 5 – 120PSI Bronze Piston & Cylinder Neoprene Diaphragm *Contains lead. Not For Use In Water Systems Intended for Human Consumption* |
|||||
United Brass
|

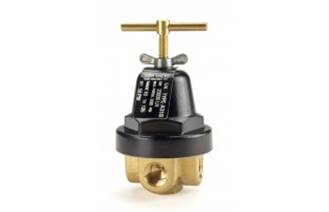

Model 915-A31 Two Port Regulating & Reducing Valve Inlet Pressure 300PSI Max. @180 ° Max Designed for Air, Water & Oil Applications. *Contains lead. Not For Use In Water Systems Intended for Human Consumption* Not Rated For Steam. |
United Brass
|
Model 915-A31S Three Port Regulating & Reducing Valve Inlet Pressure 300 PSI Max. @ 180 ° Max Designed for Air, Water &
Oil Applications. *Contains lead. Not For Use In Water Systems Intended for Human Consumption* Not Rated For Steam. Third port accepts Model 974B back connect gauge. |
|||||
United Brass
|
Model 1001K Reducing Valve Installation Kit Kits Available From 1/4” – 2” Install on outlet side of pressure reducing valve for accurate measurement of steam pressure. |
|
||||||
United Brass
|

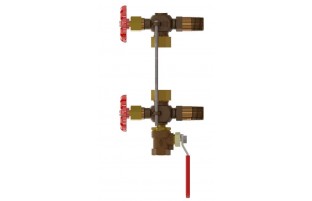

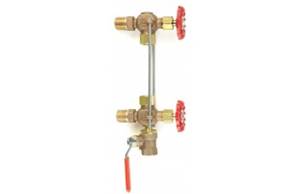

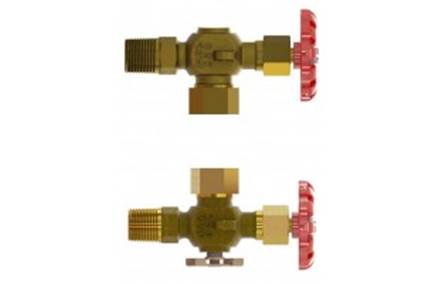

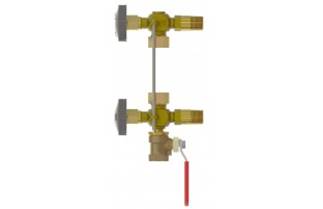

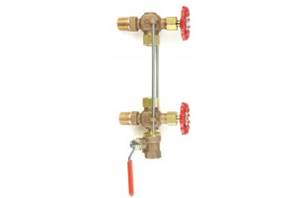

Model 34011 Long Shank Water Gauge Fixture Set W/Ball Valve for Blow Off 250 WSP @ 406°F Max 400WOG Rising Stem *Contains lead. Not For Use In Water Systems Intended for Human Consumption* |
United Brass
|
Model 34012 Short Shank Water Gauge Fixture Set W/Ball Valve for Blow Off 250 WSP @ 406°F Max 400WOG Rising Stem *Contains lead. Not For Use In Water Systems Intended for Human Consumption* |
|||||
United Brass
|
Model 34013 Long Shank Water Gauge Fixture Set W/Ball Valve for Blow Off and Plastic Hand Wheels 250 WSP @ 406°F Max 400WOG Rising Stem *Contains lead. Not For Use In Water Systems not Intended for Human Consumption* |
United Brass
|

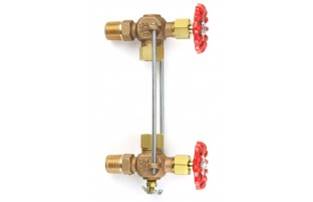

34014 1/2” Long Shank Water Gauge Fixture Set with Ball Check 250 WSP @ 406°F Max 400WOG~Rising Stem *Contains lead. Not Intended for Use in Potable Water Systems* |
|||||
United Brass
|
34015 1/2” Short Shank Water Gauge Fixture Set with Ball Check 250 WSP @ 406°F Max 400WOG~Rising Stem *Contains lead. Not Intended for use in Potable Water Systems* |
United Brass
|

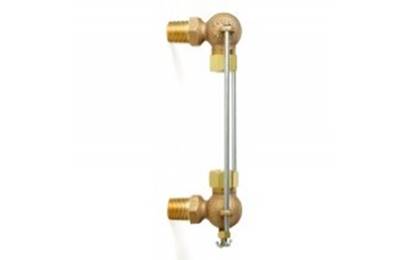

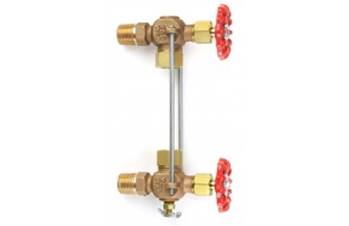

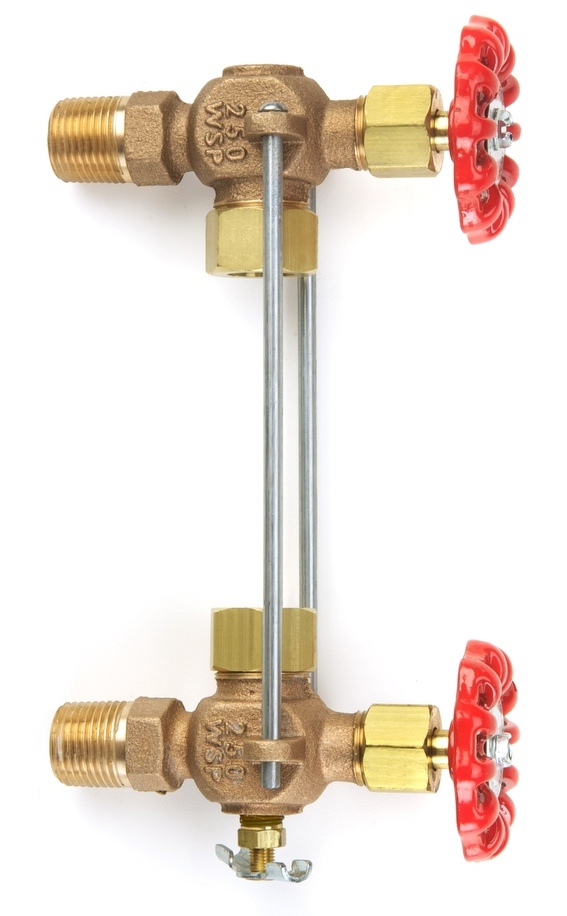

34017 1/2” Long Shank Water Gauge Fixture Set 250 WSP @ 406°F Max 400WOG~Rising Stem *Contains lead. Not Intended for Use in Potable Water Systems* |
|||||
United Brass
|
34018 1/2” Short Shank Water Gauge Fixture Set 250 WSP @ 406°F Max 400WOG~Rising Stem *Contains lead. Not Intended for Use in Potable Water Systems* |
United Brass
|
34018 1/2” Short Shank Plastic Wheel Water Gauge Fixture Set 250 WSP @ 406°F Max 400WOG~Rising Stem *Contains lead. Not Intended for Use in Potable Water Systems* |
|||||
United Brass
|
Model 34019 Expansion Tank Fixture Set 250 WSP @ 406°F Max *Contains lead. Not For Use In Water Systems Intended for Human Consumption* |
United Brass
|

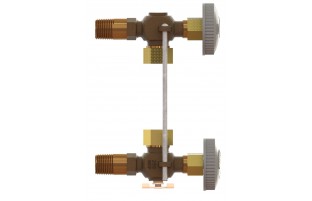

34020 1/2” Long Shank Water Gauge Fixture Set with Plastic Hand Wheels 250 WSP @ 406°F Max 400WOG~Rising Stem *Contains lead. Not Intended for Use in Potable Water Systems* |
|||||
United Brass
|
34021 1/2” Long Shank Water Gauge Fixture Set Less Protector Rods 250 WSP @ 406°F Max 400WOG~Rising Stem *Contains lead. Not Intended for Use in Potable Water Systems* |
United Brass
|
Gauge Fixture Set with Ball Valve & Ball Check 250 WSP at 406°F Max 400WOG Rising Stem Ductile Iron Hand Wheel Ball Valve for Blow Off Ball Check to Prevent Leakage, if glass breaks CRN OCO7135.2C *Contains lead. Not for use in water systems intended for human
consumption* |
|||||
United Brass
|
Model 34032 Long Shank Water Gauge Fixture Set W/Ball Checks and Ball Valve for Blow Off 250 WSP @ 406°F Max 400WOG Rising Stem *Contains lead. Not For Use In Water Systems Intended for Human Consumption* |
United Brass
|
34033 1/2” Short Shank Water Gauge Fixture Set Less Protector Rods 250 WSP @ 406°F Max 400WOG~Rising Stem *Contains lead. Not Intended for Use in Potable Water Systems* |
|||||
United Brass
|
Model 34036 Long Shank Water Gauge Fixture Set W/Ball Checks, Plastic Hand Wheel and Ball Valve for Blow Off 250 WSP @ 406°F Max 400WOG Rising Stem *Contains lead. Not For Use In Water Systems Intended for Human Consumption* |
United Brass
|
Model 34038 Short Shank Water Gauge Fixture Set W/Ball Checks, Plastic Hand Wheel and Ball Valve for Blow Off 250 WSP @ 406°F Max 400WOG Rising Stem *Contains lead. Not For Use In Water Systems Intended for Human Consumption* |
|||||
|
||||||||
United Brass
|

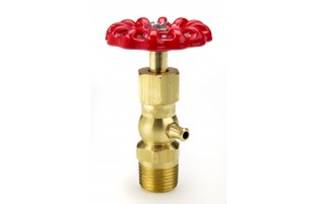

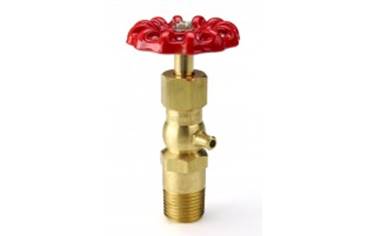

Model 966P ½” Short Shank Tricock 200 WSP @ 406° Max 400WOG Ductile Iron Hand Wheel Brass Body *Contains Lead. Not Intended for Use in Potable Water Systems* |
United Brass
|
Model 966L ½” Long Shank Tricock 250 WSP @ 406°F Max 400WOG Ductile Iron Hand Wheel Brass Body *Contains Lead. Not Intended for Use in Potable Water Systems* |
|||||
United Brass
|

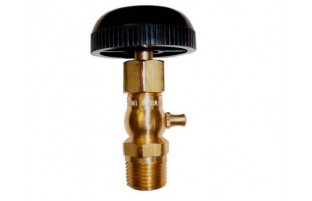

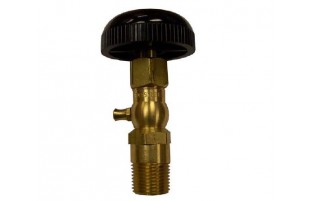

250 WSP at 406°F Max 400WOG Plastic Hand Wheel Brass Body |
United Brass
|
250 WSP at 406°F Max 400WOG Plastic Hand Wheel Brass Body *Contains lead. Not for use in water systems intended for human consumption* |
|||||
United Brass
|

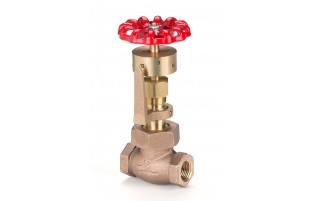

Model 363 Continuous Blow-Down Needle Valve Complies with MSS-SP -80-2013 Class 300 • 100% Pressure Tested Globe Pattern • Threaded Ends Rising Stem with Swivel Disc
Holder Calibrated “Easy to Read” Gauge
with Pointer Stainless Steel Seat & Disc
Hardened to 60 Rockwell “C” Max Pressure 390 PSI @ 500° F • Max. Pressure for Boiler Blow-Down 312 PSI |
United Brass
|

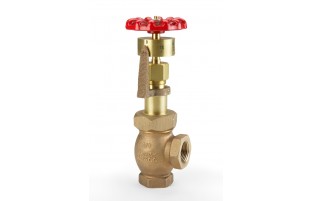

Model 364 Continuous Blow-Down Needle Valve Complies with MSS-SP -80-2013 Class 300 • 100% Pressure Tested Angle Pattern • Threaded Ends Rising Stem with Swivel Disc
Holder Calibrated “Easy to Read” Gauge
with Pointer Stainless Steel Seat & Disc
Hardened to 60 Rockwell “C” Max Pressure 390 PSI @ 500° F • Max Pressure for Boiler Blow-Down 312 PSI |
|||||
United Brass
|

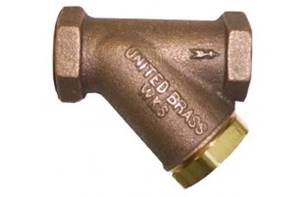

Model 200 Strainer With Steel Plug 200WSP @ 406° Max 400 WOG 100% Pressure Tested Threaded Ends All Available in 24, 50 or 100 Mesh screen sizes. |
United Brass
|
Model 200WBP Strainer With Brass Plug 200WSP @ 406° Max 400 WOG 100% Pressure Tested Threaded Ends All Available in 24, 50 or 100 Mesh screen sizes |
|||||
United Brass
|
Model 200WSC Strainer With Solid Cap 200 WSP @ 406° Max 400 WOG 100% Pressure Tested Threaded Ends All Available in 24, 50 or 100 Mesh screen sizes. |
|
|
|||||
